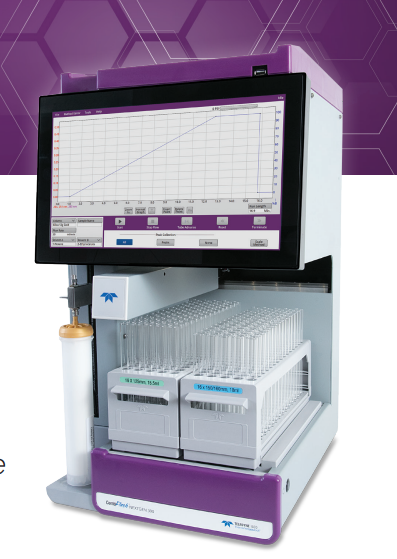

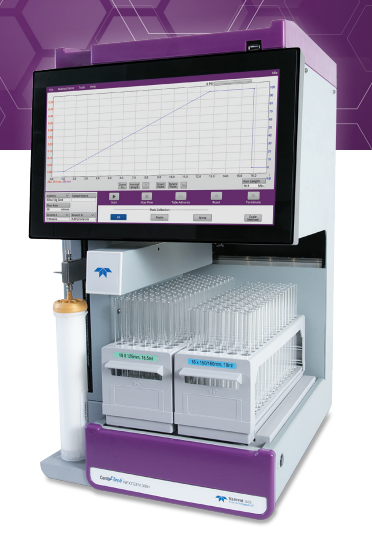

CombiFlash NextGen 300 Flash Chromatography System
The CombiFlash NextGen Flash Chromatography System offers the most options in regards to system configurations. The CombiFlash NextGen 300 is configurable to your needs. Like the 300+, safety features including active vapor, solvent-level and waste-level sensing is standard. The system is designed for liquid injections, operating at up to 150 psi (10 bar). You determine what your needs are; don’t invest in unused or unwanted features.
- Straightforward Complete control on one screen
- Compact Designed to take up minimal lab space
- Flexible Configure to meet your specific needs
- Faster New default methods with higher flows and steeper gradients speed up the purification without sacrificing performance
- Greener Conserve solvent with optimized gradients
Standard System Features:
- Flow rates from 1 to 300 mL/min
- Operating pressure up to 300 psi (20 bar)
- Choice of UV, UV-Vis ELSD or MS options
- Customizable to meet your application needs
CombiFlash NextGen 300
| Flow Rate Range | 1-300 mL/min |
| Sample Loading Technique | Liquid and Solid (standard) (option at time of purchase) |
| Maximum Pressure |
-Up to 150 psi (10 bar) Liquid Load -Up to 300 psi (20 bar) with Solid Load option -Lower pressure limits user defined |
| UV and UV-Vis Detection | Variable UV 200–400 nm or Variable UV-Vis 200–800 nm (PDA Technology) |
| Real Time UV Spectral Display | Standard |
|
Absorbing Solvent Baseline Substract |
Standard |
| ELSD Detection | Integrated option that can be combined with either UV or UV-Vis |
| Number of Solvents | Binary gradient, 4 solvents |
| Modifier 3rd Solvent | Standard |
| Gradient Formation | Low pressure |
| Programmable Gradients | Linear, step, isocratic |
| User Interface | 12” capacitive touch screen |
| Fraction Collector | Internal |
| Rack Size RFID Read | Option at time of purchase |
| Real Time Method Editing | Standard |
| Air Purge | Standard |
| Active Solvent and Waste Level Monitoring | Standard |
| Internal Vapor Sensor | Standard |
| Vapor Enclosure for Collection Racks | Optional |
| Lighted Rack Area | Standard |
| Certification | TUV |
|
Dimensions (H x W x D) |
26 x 14.1 x 17 in (66 x 36 x 43 cm) |
|
Weight with ELSD Weight without ELSD |
74 lb (33.6 kg) 61 lb (27.7 kg) |
