ReaXus M1 Class
ReaXus M1 Class
Affordable Single Piston Pumps with Excellent Capability
The compact M1 Class HPLC Pump consists of single-headed, positive displacement piston pumps that deliver high-performance and precision at an affordable price. Superior to Gear, Diaphragm, and Peristaltic pumps, the M1Class provides greater performance at an equivalent cost to lesser functioning products.
Applications include precise chemical metering, dispensing, and specific HPLC separations. Standard fluid path materials are Stainless Steel. With 10 mL/min, 40 mL/min, and 100 mL/min versions, reaching pressures up to 2,500 psi, these pumps capture the majority of typical laboratory fluid transfer applications.

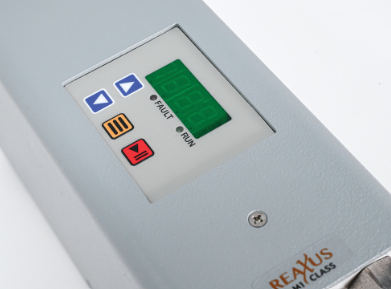

Features include interactive keypad control, Pulse Dampener and Outlet Filter, RS-232 Serial and Micro USB 2.0 ports for complete PC control and status, as well as hardware for laboratory stand mounting. Having the smallest possible footprint for a high pressure pump, the M1 Class will easily integrate into any laboratory or industrial environment.
|
Flow Rate |
Pressure |
Fluid Path |
Control |
|
10 mL/min 40 mL/min 100 mL/min |
Up to 2,500 psi |
Stainless Steel PEEK |
RS-232, Micro USB, Run/Stop |
ReaXus M1 Class
|
Flow Rate Range and Max. Pressure Ratings* |
0.0-10.000 mL/min (2,500 psi) |
|---|---|
| 0.0-40.000 mL/min (500 psi) | |
| 0.0-100.0 mL/min (250 psi) | |
| Flow Reproducibility | 1.5% RSD (10.0 mL/min) |
| 1% RSD (40.0 mL/min, 100 mL/min) | |
| Flow Rate Accuracy | ±5% (0.5 – 10.0 mL/min; 80:20 Water/IPA; 1,000 psi) (10mL) |
| ±5% (0.5 – 36.0 mL/min; 80:20 Water/IPA; 250 psi) (40mL) | |
| ±5% (10.0 – 100.0 mL/min; 80:20 Water/IPA; 100 psi) (100 mL) | |
| Wetted Materials | PEEK pumps may include: PEEK, Synthetic Ruby, Sapphire, UHMWPE, FFKM |
| Stainless Steel pumps may include: 316 Stainless Steel, PEEK, Synthetic Ruby, Sapphire, Alumina, UHMWPE, PTFE, ETFE | |
| Dimensions | 5.6" H x 3" W x 10.6" D |
| (14.2 x 7.6 x 26.9 cm) | |
| Weight | 6 lbs. (2.7 kg) |
| Power | 100-240 Vac, 50-60 Hz |
| Control | RS-232, Micro USB, Run/Stop |
