ReaXus LS Class
ReaXus LS Class
High Performance Isocratic Pumps
The reliable ReaXus LS Class consists of single-headed, positive displacement piston pumps incorporating advanced cam designs for very low pulsation.
The pumps are ideal for a wide variety of applications, Semi-Prep LC, metering & dispensing, and general laboratory use. Standard fluid path materials are Stainless Steel with PEEK options. Other available features include jacketed heads for temperature controlled processes. With 5 mL/min, 10 mL/min, and 40 mL/min versions available, and pressure capability up to 6,000 psi, these versatile pumps will meet the most demanding applications.
Features include automatic pressure compensation, Pulse Dampener, integrated Prime-Purge Valve, interactive keypad control, and complete PC control and status through RS-232 and Micro USB 2.0 ports. The unique LS Class provides the highest performance/cost ratio in a compact package.
|
Flow Rate |
Pressure |
Fluid Path |
Control |
|
5 mL/min 10 mL/min 40 mL/min |
Up to 6,000 psi |

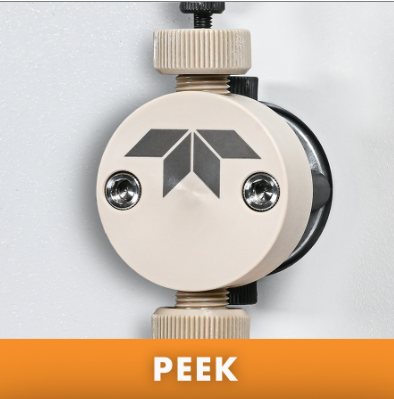

Stainless Steel PEEK |
RS-232, Micro USB, Run/Stop, Analog |
ReaXus LS Class
| Flow Rate Range and Max. Pressure Ratings* | 0.0-5.000 mL/min (6,000 psi Stainless) (5,000 psi PEEK) |
|---|---|
| 0.0-10.00 mL/min (6,000 psi Stainless) (5,000 psi PEEK) | |
| 0.0-40.0 mL/min (1500 psi) | |
| Pulsation** | ≤1.5% @ 1 mL/min and 80:20 Water/IPA; 1,000 ps (5 mL) |
| ≤2.0% @ 1 mL/min and 80:20 Water/IPA; 1,000 psi (10 mL) | |
| ≤2.0% @ 4 mL/min and 80:20 Water/IPA; 1,000 psi (40 mL) | |
| Pressure Accuracy | ±50 psi |
| Flow Reproducibility | 1% RSD (0.500 – 5.000 mL/min; 80:20 Water/IPA; 1,000 psi) (5 mL) |
| 1% RSD (1.00 – 10.00 mL/min; 80:20 Water/IPA; 1,000 psi) (10 mL) | |
| 1% RSD (0.5 – 40.0 mL/min; 80:20 Water/IPA; 1,000 psi) (40 mL) | |
| Flow Rate Accuracy | ±2% (0.500 – 5.000 mL/min; 80:20 Water/IPA; 1,000 psi) (5 mL) |
| ±2% (1.00 – 10.00 mL/min; 80:20 Water/IPA; 1,000 psi) (10 mL) | |
| ±2% (4.0 – 40.0 mL/min; 80:20 Water/IPA; 1,000 psi) (40 mL) | |
| Wetted Materials | PEEK pumps may include: PEEK, Synthetic Ruby, Sapphire, Zirconia, UHMWPE, FFKM, PFA, ETFE |
| Stainless Steel pumps may include: 316 Stainless Steel, PEEK, Synthetic Ruby, Sapphire, Zirconia, UHMWPE, PFA, PTFE, ETFE | |
| Dimensions | 6.4" H x 7" W x 16" D |
| (16.3 x 17.8 x 40.6 cm) | |
| Weight | 15.5 lbs. (7.0 kg) |
| Power | 100-240 Vac (±10%), 50-60 Hz |
| Control | RS-232, Micro USB, Run/Stop, Analog (0-10V, 4-20mA) |
