Fusion 200-X
FUSION 200-X

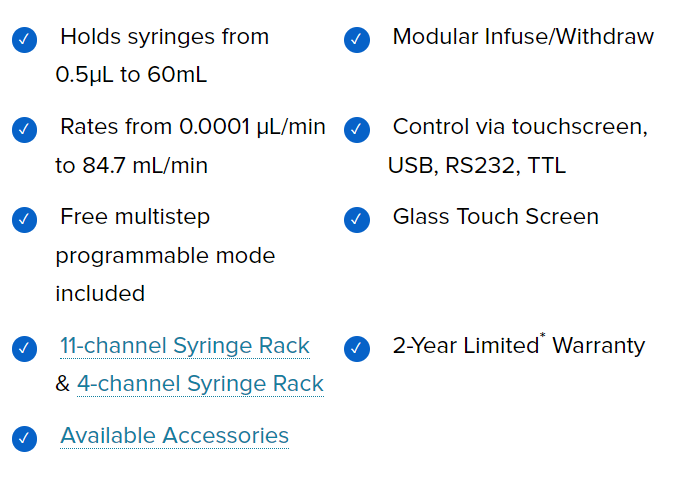

The Fusion 200-X is a programmable, dual-channel infusion and withdrawal modular syringe pump. This advanced precision syringe pump features two syringes to infuse/withdraw simultaneously at pulseless, reproducible rates; a programmable multi-step mode that allows users to program complex multi-step flow rates; computer control with Lab view and other programs; an add-on 4-syringe push and pull rack for four large syringes; an add-on 11-syringe push and pull rack to increase the syringe number up to eleven. Fusion 200-X the full-glass touch screen is chemical resistant and easy to clean for lab environments of all types. This syringe pump is designed for precision dispensing/dilution, organ/tissue perfusion, and microfluidics, electrospinning, aerosols, pharmaceutical, and bioscience research.
FUSION 200-X
| Mode | Infuse/Withdraw |
| Accuracy | ± < 0.35% |
| Reproducibility | ± < 0.2% |
| Syringe Size (Min/Max) | 0.5µL to 60mL |
| Syringe Type | Plastic, Glass and Stainless Steel Syringe Type Chart |
| Syringe Flow Rates | See Syringe Library for Min & Max Flow Rates |
| Minimum Flow Rate | 0.0001 µL/min (with 0.5µL syringe) |
| Maximum Flow Rate | 85 mL/min(with 50mL syringe) |
| Linear Force | 65lb (29.4kg) |
| Display | 4.3 inch LCD Touch Screen |
| Connectivity | USB-B, RS232 and TTL Ports |
| System Dimensions | 9.5 x 8.2 x 4.9 inches (24 x 20.8 x 12.4 cm) |
| Power | 110/220 VAC automatically switches between 110V to 220V, 30 W |
| Weight | 7lbs (3.1kg) |
| Motor Drive | 1.8˚ MicroStepper Motor |
| Step Resolution | 0.0528 µm/step |
| Operating Temperature | 4°C to 40°C (40°F to 104°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Multi Steps | Program steps up to 99 step / loop steps up to 99 loop |
| Parameter Setting | Option to choose time or rate |
| Modular Capability | Option to add a 11 syringe rack |
| Humidity | 20% to 80% RH, non-condensing |
| Installation Category | II |
| Regulatory Compliance | CE, RoHS, REACH, ETL |
