Fusion 100-X
Fusion 100-X

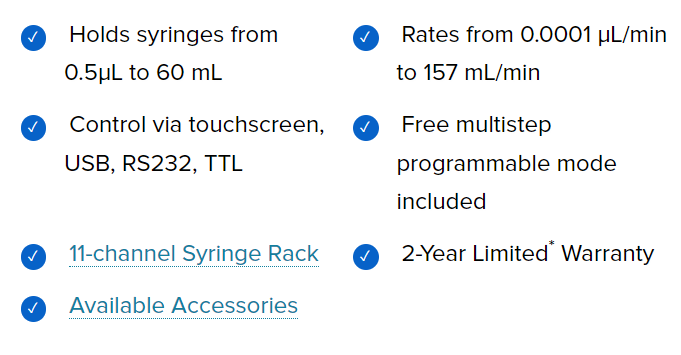

The Fusion 100-X syringe pump is a programmable modular dual-channel precision infusion syringe pump. This syringe pump has the following features: two syringes to infuse simultaneously, a full-glass chemical resistant touch screen, a programmable multi-step mode, computer control with Lab view and other programs, an add-on 11-Syringe push rack to increase the syringe used to eleven. Fusion 100-X can be used for dispensing/dilution, organ/tissue perfusion, and fluid circulation in chemical, pharmaceutical, and biotech R&D.
Fusion 100-X
| Mode | Infuse Only |
| Accuracy | ± < 0.35% |
| Reproducibility | ± < 0.05% |
| Syringe Size (Min/Max) | 0.5µL to 60mL |
| Syringe Type | Plastic, Glass and Stainless Steel Syringe Type Chart |
| Syringe Flow Rates | See Syringe Library for Min & Max Flow Rates |
| Minimum Flow Rate | 0.0001 µL/min (with 0.5µL syringe) |
| Maximum Flow Rate | 85 mL/min (with 60mL syringe) |
| Linear Force | 55lb (25kg) |
| Display | 4.3 inch LCD Glass Touch Screen |
| Connectivity | USB-B, RS232 and TTL Ports |
| System Dimensions | 9.5 x 8.0 x 4.9 inches (24 x 20 x 12 cm) |
| Power | 110/220 VAC, 30W auto switching |
| Weight | 7lbs (3kg) |
| Motor Drive | 1.8˚ MicroStepper Motor |
| Step Resolution | 0.0528 µm/step |
| Operating Temperature | 4°C to 40°C (40°F to 104°F) |
| Multi Steps | Program up to 99 step with looping steps |
| Parameter Setting | Runs based on time or rate |
| Modular Capability | Option to add a 11 syringe rack |
| Regulatory Compliance | CE, RoHS, REACH, ETL |
