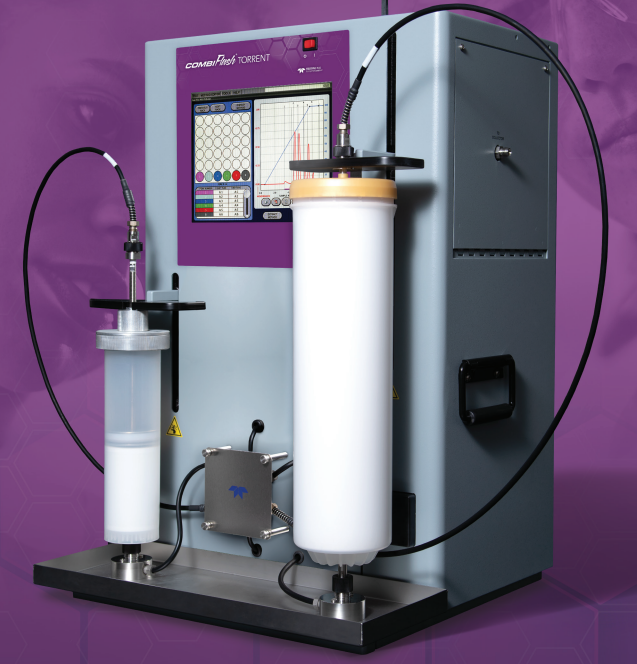

CombiFlash Torrent
CombiFlash Torrent
Versatile Large-Scale Flash Purification
CombiFlash Torrent® systems from Teledyne ISCO provides the ease of use and high reliability of our CombiFlash and RediSep® product lines in a large, development-scale platform. Packed with time-saving features and controlled by our innovative PeakTrak® software, the CombiFlash Torrent accommodates a broad range of injection, detection, and collection requirements. Choose from two models: CombiFlash Torrent for a combination of normal phase and reverse phase purifications, or CombiFlash Torrent AQ optimized for reverse phase.
Safety
Patented active solvent sensing technology monitors solvent supply and waste levels for true walk-away automation. Pressure and vapor sensors ensure safe operation by stopping the purification when pressure increases, or a leak is detected. Fully grounded tubing allows safe operation at high flow rates. Optional air purging of the column after use simplifies disposal.
Versatility
Tailor a system to meet your needs with a variety of sample introduction and fraction handling configurations.
Highly Programmable and Easy to Use
Teledyne ISCO’s powerful yet intuitive PeakTrak software—the industry standard in flash chromatography—lets you quickly access and edit every method parameter from one screen.
Standard Features
- 1 L/min flow rate
- 100 psi rated
- 700 g purifications
- Patented solvent and waste level sensing technology
- Fully-grounded fluid path
- Easy-to-use PeakTrak® software
- Accepts RediSep column sizes from 80 g to 7 g silica and 100 g to 8.6 kg C18
- RFID column detection
- Automated six-port valve and large diameter tubing
Read more
CombiFlash Torrent
| Sample size | 0.5 to 300 grams |
| RediSep Rf column sizes | 80 grams to 8.6 kilograms |
| Flow Rate Range | 50-1000 mL/min |
| Maximum Pressure | 100 psi (6.89 bar) |
| Detection | 200–400 nm (200–800 nm optional) with single, dual, or All-wavelength collection. Accepts external detector input |
| Gradient | Binary, high pressure solvent mixing with linear, step, or isocratic capability. Two solvent inlets. |
| Gradient accuracy | <2% full scale from 0.2 to 1.0 liter/min. |
| Sample injection | Automated injection with options of solid load cartridges, liquid load, or direct injection. |
| Controller | 10.4 in (26.7 cm) touchscreen |
| Software | On-screen method development and control with PeakTrak software |
| Fraction collection | Up to four fraction collectors, fractionation valve, or manual collection. |
| Solvent management | Patented, active level sensing for inlet and waste containers. |
| Module dimensions | (W x D x H) 18.5 x 17.9 x 28.1 in (47 x 43.5 x 71.4 cm) |
| Module weigh | 65 lbs (29.5 kg) |
| Operating voltage | 100 VAC 50 Hz, 117 VAC 60 Hz, 234 VAC 50 Hz |
| Safety and sample security |
|
