CombiFlash EZ Prep
CombiFlash EZ Prep

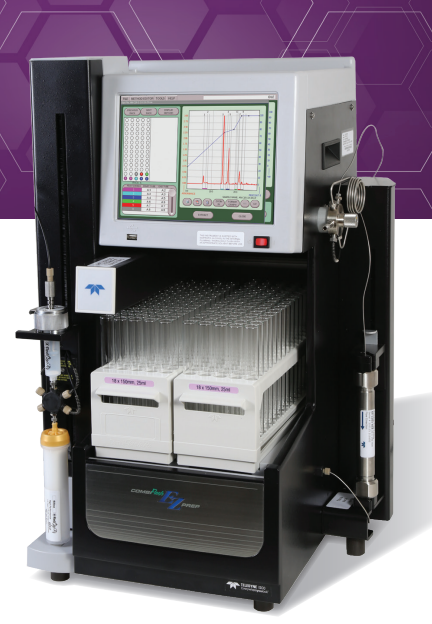

CombiFlash EZ Prep Dual Function Purification System
The CombiFlash EZ Prep system from Teledyne ISCO is a dual function purification system that enables the user to perform both Flash and Preparative (Prep) purifications on the same instrument. Eliminating the need for two separate systems, the EZ Prep system provides the flexibility to seamlessly switch between Flash and Prep HPLC modes without compromising performance.
- Simplicity Simplest transition of any Flash/Prep HPLC system– switch to high-pressure preparative chromatography in just two clicks
- Small Footprint Highly compact design occupies minimal lab space
- Compatibility Runs Preparative HPLC columns packed with particles down to 5 µm for maximum efficiency
Features:
- Up to 3,500 psi (240 bar) and 200 mL/min
- Run Prep HPLC columns up to 50 mm in diameter (including 5 µm particle diameter)
- Flash purification for 10 milligram to 33 grams followed by final compound purification on high performance columns
- UV, UV-Vis, ELSD and MS detection options available
- Switch between normal and reverse phase solvents automatically, without user interaction

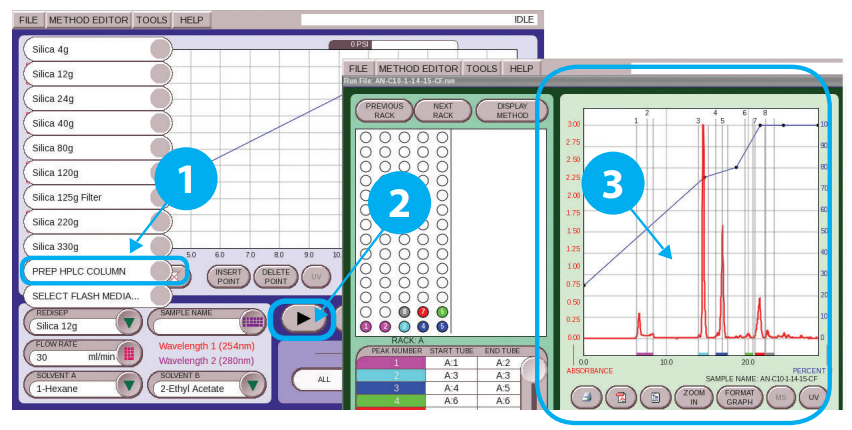

It’s easy!
1. Select preparative HPLC column from the drop-down menu. The system automatically switches from Flash to HPLC Prep Mode.
2. Press play.
3. Review results.
CombiFlash EZ Prep
| Flow Rate Range | 5-200 mL/min (Flash & Prep) |
| Pump Prime | Self-priming |
| Maximum Pressure (Flash Operation) | 200 psi (13.8 bar) |
| Maximum Pressure | Up to 3500 psi (240 bar) |
| UV and UV Vis Detection |
UV 200–400 nm standard, UV vis 200–800 nm optional |
| ELSD Detection | Built-in detector compatible with either UV or UV-Vis |
| Mass Spectrometer | Three models with mass ranges of 10–1200 and 10–2000 Da |
| Number of Solvents | Binary gradient between any two of four solvents |
| Programmable Gradients | Linear, step, isocratic |
| Sample Introduction (Flash) | Solid or liquid load |
| Sample Introduction (Prep) | Variable volume liquid load (5mL loop standard) |
| User Interface | 10.4 in (26.4 cm) touchscreen |
| Fraction Collector | Internal |
| Dimensions (H x W x D) | 26.8 x 16.9 x 17 in (68 x 43 x 43.2 cm) |
