Lifting Glass Reactor 5L/10L/20L/30L/50L (GRL series)
Lifting Glass Reactor 5L/10L/20L/30L/50L (GRL series)
Speed-regulation glass reactors are mainly used for synthetic reaction, distillation and concentration of different types of materials. We have single wall, double wall and triple wall glass reactors. The reactor can be pumped to a negative pressure state according to some experimental requirements. A constant pressure funnel or an adjusting valve on the feeding bottle allows you to add material to the vessel at a uniform and controlled speed. Condenser helps to recover some materials distillated during reaction. Circulating liquid can be filled into the jacket to heat or cool materials inside. Triple wall glass reactor with two jackets, the inner jacket is for circulating liquid, and the outer layer should be pumped to vacuum condition for thermal insulation.
● Vessel and lid can be separate.
● glass vessel can be lifted up, and angled 120 degree both sides.
● PTFE and FV rubber material cock sealing with PTFE covered O-ring.

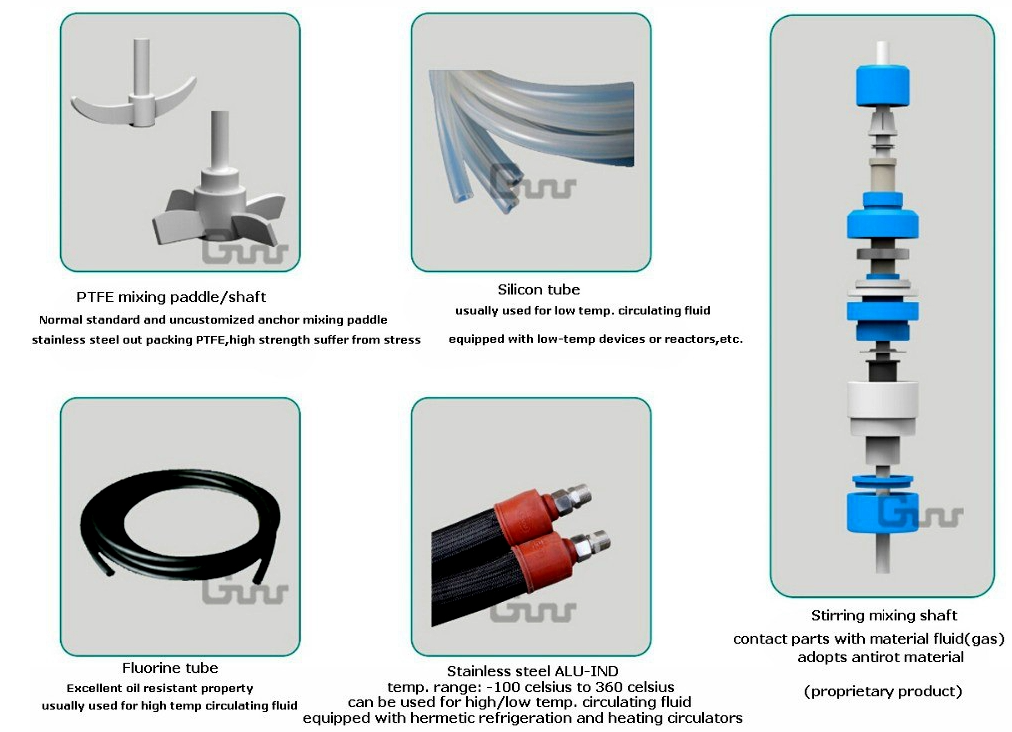

● Patented PTFE stirring shaft with long life-span.
● Stainless steel 304 supporting frame.
● PTFE discharge valve with fluorine covered O-ring.
● All glasswares are high borosilicate glass 3.3.
● Swivel caster with lock for reactor safety.
● Openings are sealed with flanges; higher vacuum degree, easy disassemble.
Lifting Glass Reactor 5L/10L/20L/30L/50L (GRL series)
| High borosilicate glass composition table | |
|
Item |
Specifications |
|
Linear thermal expansion coefficient |
3.33x10 'k"' |
|
Silicon dioxide |
80.14%(g/g) |
|
Ferric oxide |
0.023%(g/g) |
|
Aluminum oxide |
2.22%(g/g) |
|
Calcium oxide |
0.15%(g/g) |
|
Magnesium oxide |
0.026%(g/g) |
|
Potassium oxide |
0.077%(g/g) |
|
Sodium oxide |
4.36%(g/g) |
|
Diboron trioxide |
13.00%(g/g) |
Technical specifications
| Model | GRL-5(Ex) | GRL-10(Ex) | GRL-20(Ex) | GRL-30(Ex) | GRL-50(Ex) |
|
Glass material |
High borosilicate glass | ||||
| Sensor material | Stainless steel coated by fluorine, double anti-corrosion | ||||
|
Temperature range |
-80~200℃ | ||||
| Speed control | Frequency speed control | ||||
| Bearable temperature difference | 60℃(Triple wall), 80℃(Double wall) | ||||
| Diameter of circulating fluid inlet and outlet | DN15 | ||||
| Power supply | 220-240V~,50/60Hz | ||||
Precautions
● Max. working temperature is 200℃, and the max. temperature difference between the internal and external of the reactor is 80℃. When heating or cooling the reactor, it's recomended to monitor the temperature inside and outside the vessel continously and heat up or cool down gradually to avoid accidents.
● Bearable temperature difference: 100℃ (jacketed), 80℃ (double jacketed).
● Reactor vessel can withstand the pressure ranges from -0.1MPa to 0MPa.
● For IIB explosive atmosphere, dIIBT4 standard explosion-proof parts (heater, control box, motor, wires) will be used for safety concern.
