Digital Rotary Evaporator
RE100-Pro Digital Rotary Evaporator
RE100-PRO is a digital rotary evaporator with motorized lift suitable for a wide range of applications which involve distillation processes. Rotary evaporator is an essential equipment in most chemical laboratories. These are useful in removal of high boiling point solvents from samples under low pressure.
Features
Large LCD digital display indicates rotation speed, heating temperature and time.
User friendly operation with automatic motor lift.
Automatically lift the evaporation flask out of the bath in case of accidental power failure.

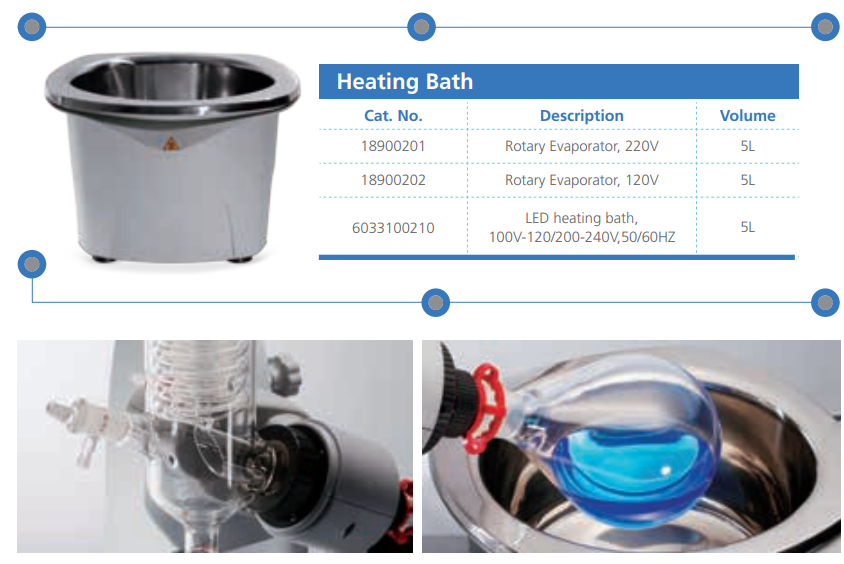

5L flask capacity heating bath with stainless steel interior, compatible with both water and oil bath.
Water/oil heating mode can be changed only through a switch.
Safety circuits prevent overheating at 220°C and these can be used for high temperature evaporations.

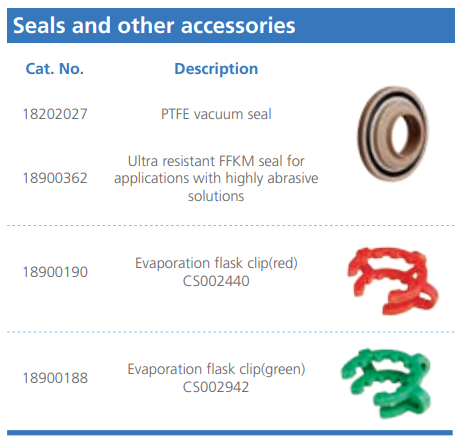

Chemically resistant PTFE sealing ring designed to be vacuum tight.
USB interface for data documentation and control through PC.

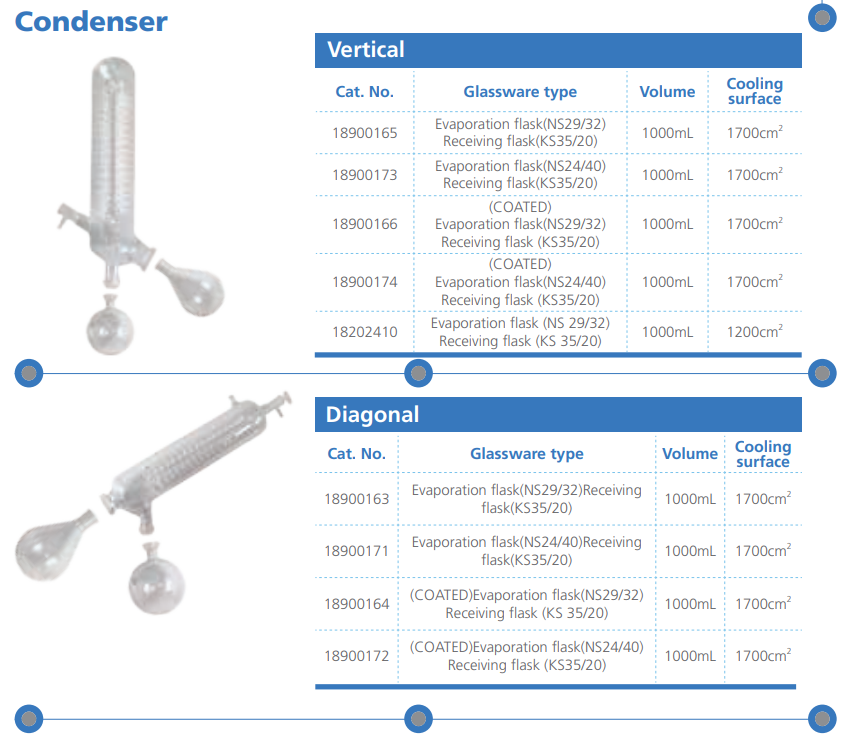

Vertical condenser with large surface area of 1700 cm2 provides excellent cooling effect.
Wide variety of glassware suitable for various applications.
RE100-Pro Digital Rotary Evaporator
| Specifications | RE100-Pro |
| Motor Type | Brushless DC motor |
| Speed Range | 20-280rpm |
| Display | LCD(speed,temperature, time) |
| Clockwise and Anti-clockwise | Yes |
| Heating Temperature Range | Room temp. to 180℃ |
| Control Accuracy | water: ±1℃ oil: ±3℃ |
| Heating Power | 1300W |
| Stroke Displacement | automatic 150mm |
| Timer | Yes |
| Time Setting Range | 1-999min |
| Dimension[D×W×H] | 465×457×583mm |
| Weight | 15kg |
| Permissible Ambient Temperature | 5-40℃ |
| Permissible Relative Humidity | 80%RH |
| Protection Class | IP20 |
| Weight | 2.8kg |
| Protection class | IP21 |
| USB Interface | Yes |
| Voltage/Frequency | 100-120/200-240V 50/60 Hz |
| Power | 1400 W |
