ReaXus MX Class
ReaXus MX Class

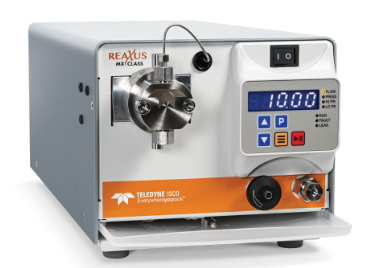

High Performance Isocratic Pumps at an Affordable Price
The economical MX Class consists of single-headed, positive displacement piston pumps incorporating additional features for challenging applications. With pressure capability up to 5,000 psi, the MX Class can be used in both analytical and smallscale preparative HPLC separations.
Further applications include demanding metering and dispensing, as well as Sample Injection, Infusion, or Cone Wash for Mass Spectrometers. Standard fluid path material is Stainless Steel.

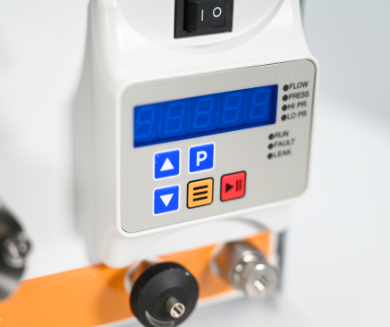

Features include available pressure monitoring with automatic pressure compensation, Pulse Dampener, integrated Prime-Purge Valve, interactive keypad control, and complete PC control and status through RS-232 and Micro USB 2.0 ports. Requiring minimal bench space for the performance, the MX Class will easily integrate into most workspaces.
|
Flow Rate |
Pressure |
Fluid Path |
Control |
|
10 mL/min |
Up to 5,000 psi |
Stainless Steel |
RS-232, Micro USB, Run/Stop, Analog |
ReaXus MX Class
| Flow Rate Range and Max. Pressure Ratings* | 0.01-10.00 mL/min (5,000 psi) |
|---|---|
| Flow Reproducibility | 1% RSD (1.5 – 10.0 mL/min; 80:20 Water/IPA; 1,000 psi) |
| Flow Rate Accuracy | ±2% (1.5 – 10.0 mL/min; 80:20 Water/IPA; 1,000 psi) |
| Pulsation | ≤3.0% @ 1 mL/min and 80:20 Water/IPA; 1,000 psi |
| Wetted Materials | 316 Stainless Steel, Synthetic Ruby, Sapphire, UHMWPE, PTFE, ETFE, PFA, PEEK |
| Dimensions | 6.4" H x 7" W x 16" D |
| (16.1 x 17.8 x 40.6 cm) | |
| Weight | 14.2 lbs. (6.4 kg) |
| Power | 100-240 Vac (±10%), 50-60 Hz |
| Control | RS-232, Micro USB, Run/Stop, Analog (0-10V, 4-20mA) |
