ReaXus HF Class

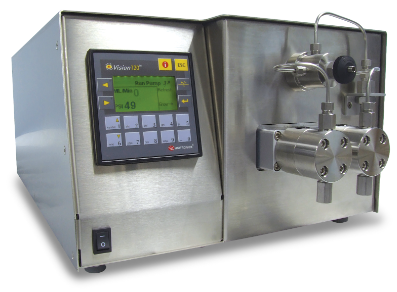

High Performance for Your ApplicationConstant Pressure Dual Head Pump
The HF Series pumps are specifically designed to meet the requirements of Preparative Liquid Chromatography (HPLC) and high pressure Process/Metering applications. The Stainless Steel fluid path will withstand the toughest applications.
Heavy Duty Design
The HF Series pumps are dual-headed piston pumps with servo motors, belt drives, and reliable eccentric cams. Standard features include an LCD keypad with advanced HMI/PLC interface, and RS-232 for complete control and status monitoring. Prime-Purge Valve, Outlet Filter, and Pressure Transducer are also included.
Wide, Accurate Flow & Pressure Range
These pumps deliver very precise flow rates up to 300 mL/min, with pressures up to 10,000 psi.
Easy Maintenance
All Teledyne ISCO ReaXus pumps are known for fast, easy maintenance. Check valves, pistons, and seals are readily accessible, and Automatic Piston Wash is standard. These features contribute to reduced down-time and operating expenses.
|
Flow Rate |
Pressure |
Fluid Path |
Control |
|
300 mL/min |
Up to 10,000 psi |
Stainless Steel |
HMI/PLC Interface, RS-232 |
High Performance for Your ApplicationConstant Pressure Dual Head Pump
| Flow Rate Range and Max. Pressure Ratings* | 0.1-300 mL/min (10,000 psi) |
|---|---|
| Pressure Accuracy | ±5% (5.0 – 300.0 mL/min; 80:20 Water/IPA; 1,000 psi) |
| Wetted Materials | 316 Stainless Steel, Alumina, Zirconia, UHMWPE, PTFE, PEEK |
| Dimensions | 8.9” x 13.9” x 22.1” |
| (22.6 x 35.3 x 56.1 cm) | |
| Weight | 50.0 lbs (22.7 kg) |
| Power | 100 – 240 VAC (±10%), 50 – 60 Hz, 700 W |
