DISSOLUTION TESTER ACCESSORIES

Teledyne Hanson provides an extensive range of dissolution tester accessories including precision dissolution vessels, vessel covers, paddles (USP Apparatus 2), baskets (USP Apparatus 1), sampling probes, temperature probes, small volume kits, filter block kits, humidity-sealed dosage-drop chambers, and more. Well-crafted accessories extend the capabilities of Hanson instruments and help lab managers and dissolution analysts obtain greater value from their investments and higher throughput from their testing facilities.

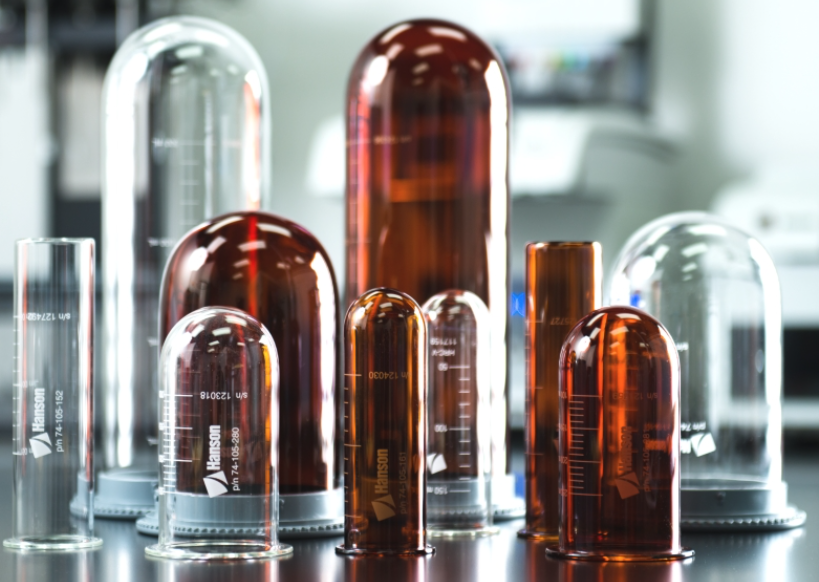

PRECISION DISSOLUTION VESSELS

Teledyne Hanson offers a complete line of borosilicate glass dissolution vessels to accommodate a vast array of testing applications, including 1-liter, 2-liter, traditional small volume, and Chinese small volume, all with your choice of clear or amberized glass. Our USP-precision series of dissolution vessels meet or exceed USP and ASTM standards to ensure the consistency of test results. The Easi-Lock™ feature of Hanson vessels ensures secure placement into the vessel plate, while rugged, chip-proof rims prevent accidental chipping of glass. All vessels are engraved with individual serial numbers and come with a USP Certificate of Conformance (COC).

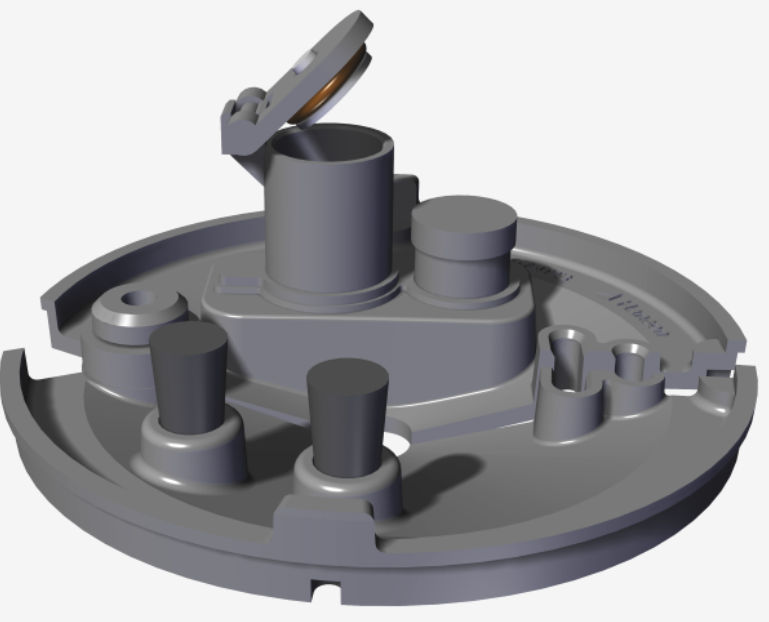

AUTO-DOSAGE DROP VESSEL COVERS

The Easi-Lock™ Auto-Dosage Delivery (ADD™) vessel cover expands on the standard Easi-Lock vessel cover with the inclusion of a humidity-sealed dosage chamber for pre-loading of tablets for rapid manual or automated dosage drop. The ADD loading chamber accommodates most tablet and capsule sizes, suspensions, Hanson sinkers, Japanese sinkers, and other commercial sinkers. The trigger mechanism delivers dosage forms automatically via the Hanson AutoMag™ or SuperMag™ or by manual touch for methods using manual sampling with staggered start. Easi-Lock ADD™ vessel covers are compatible with the Vision G2 Classic 6, the Vision G2 Elite 8, and the 14-vessel CD14 Comparative Dissolution system.

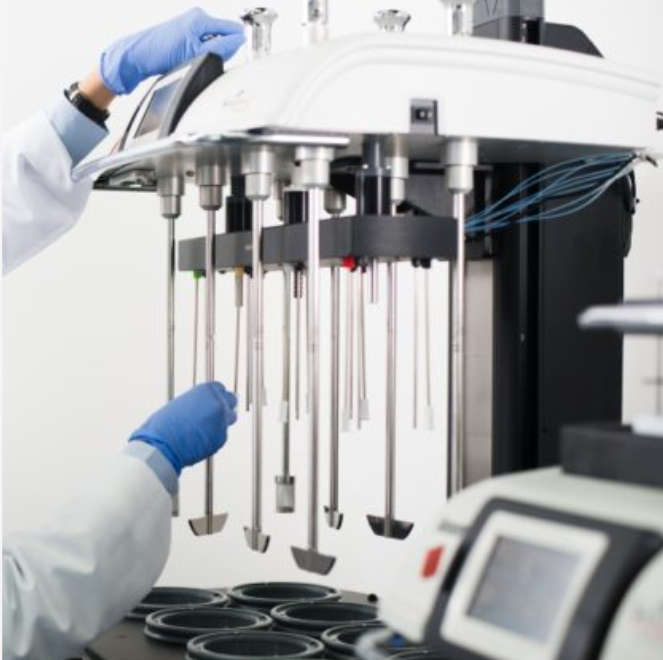

BASKETS AND PADDLES

Choose from a variety of baskets (USP App. 1), paddles (USP App. 2), and apparatuses for testing transdermal products within the dissolution tester, such as paddle-over-disk (USP App. 5), rotating cylinder (USP App. 6), and immersion cells. Mini baskets and mini paddles for small volume (150 mL), Chinese small volume (250 mL), and immersion cell applications are also available. The Teledyne Hanson spin-shaft design allows quick changeover of the lower apparatus portion from the upper shaft, which remains firmly in place to maintain accurate height measurements, especially when switching between different apparatus types.

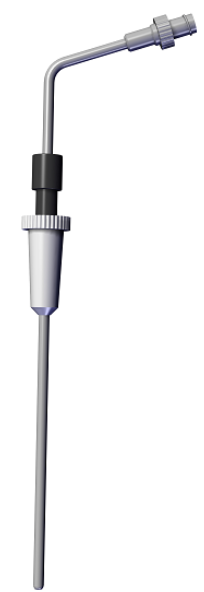

MANUAL SAMPLING CANNULA
