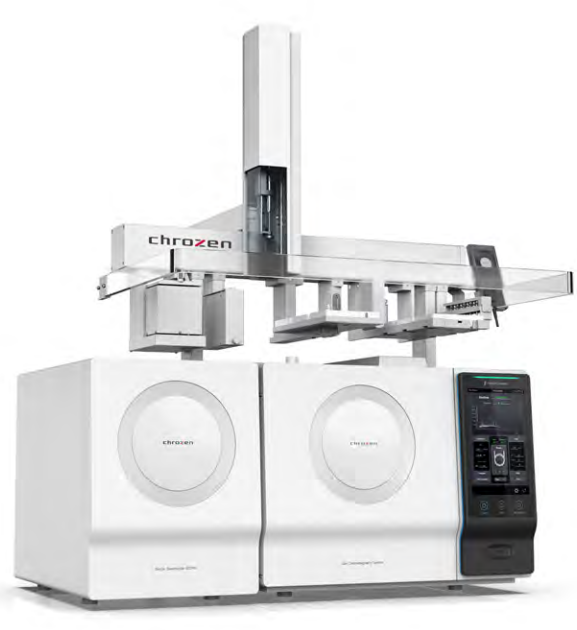

Chrozen GC/MS

Innovation Creates Greater Efficiency

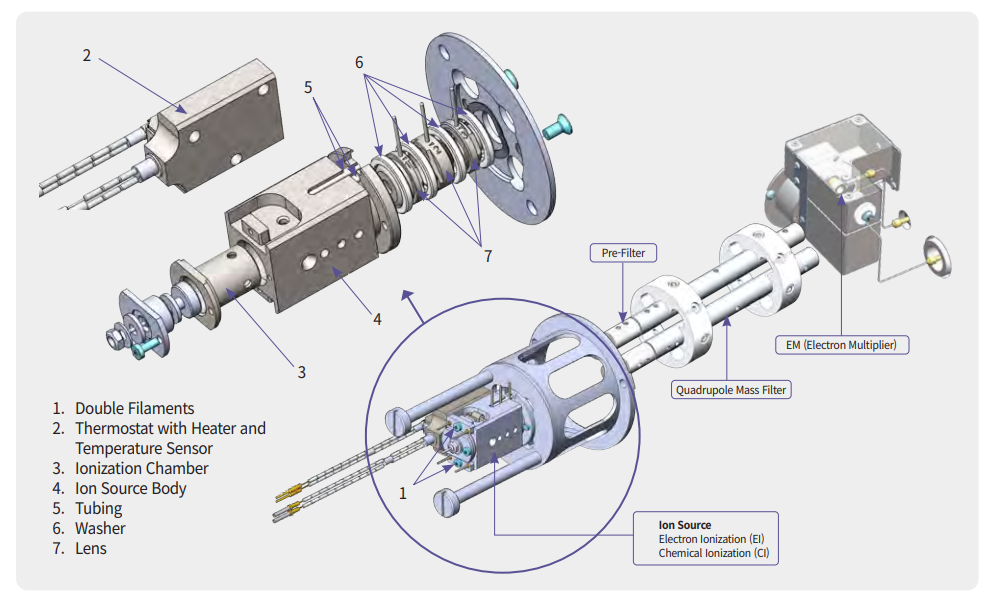

The newly designed innovative ion source, UEIS (Ultra Efficiency Ion Source), effectively prevents ion source contamination, thus, there are more ionized molecules transferred to the detector to give superior sensitivity and the detector lifetime gets extended. The individually connected double filaments and structural modification of ion source make the maintenance cost less expensive and more efficient

More Than Sensitivity

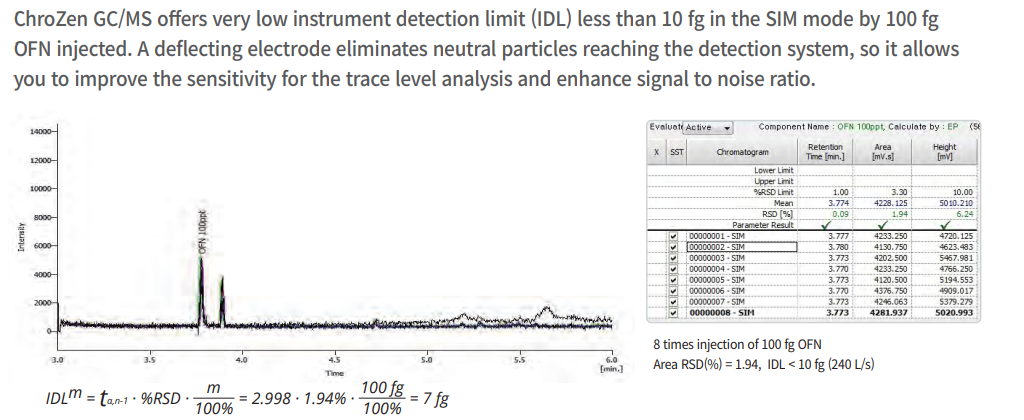

UEIS (Ultra Efficiency Ion Source) with each enhanced part such as lens and pre-filters to maximize efficiency of ionization for superior sensitivity ▪ EM (Electron Multiplier): Six spiral multiplier channels to increase linear output current for excellent sensitivity (SNR 2,500:1, IDL < 10 fg)

More Than Performance

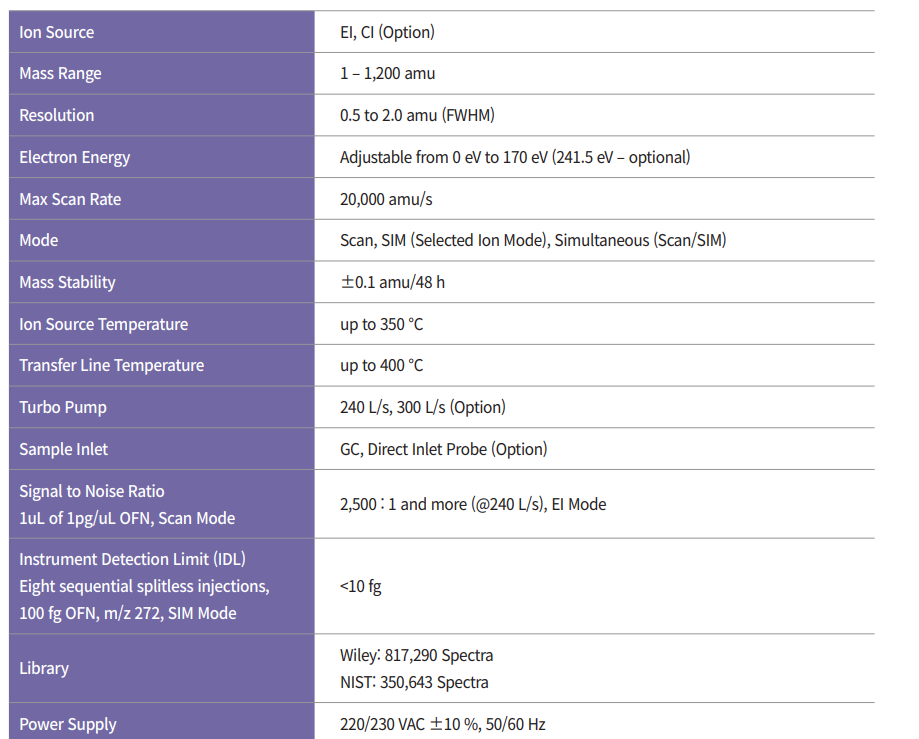

• Wide mass range: 1 ~ 1,200 amu
• Rapid scan speed: Up to 20,000 amu/s

More Than Reliability

• High capacity of turbo pump: 240L/s of standard vacuum system for fast stabilization
• Double filaments: Uninterruptible and stable analysis to minimize instrument downtime
• Ultra-inert ion source, pre-filter and quadrupole to reduce contaminations

More Than Variety

• EI as standard and CI (PCI & NCI) as option
• Scan, SIM, Simultaneous Scan/SIM mode
• Various library support depending on application

 High Performance of ChroZen GC/MS
